B&K Precision

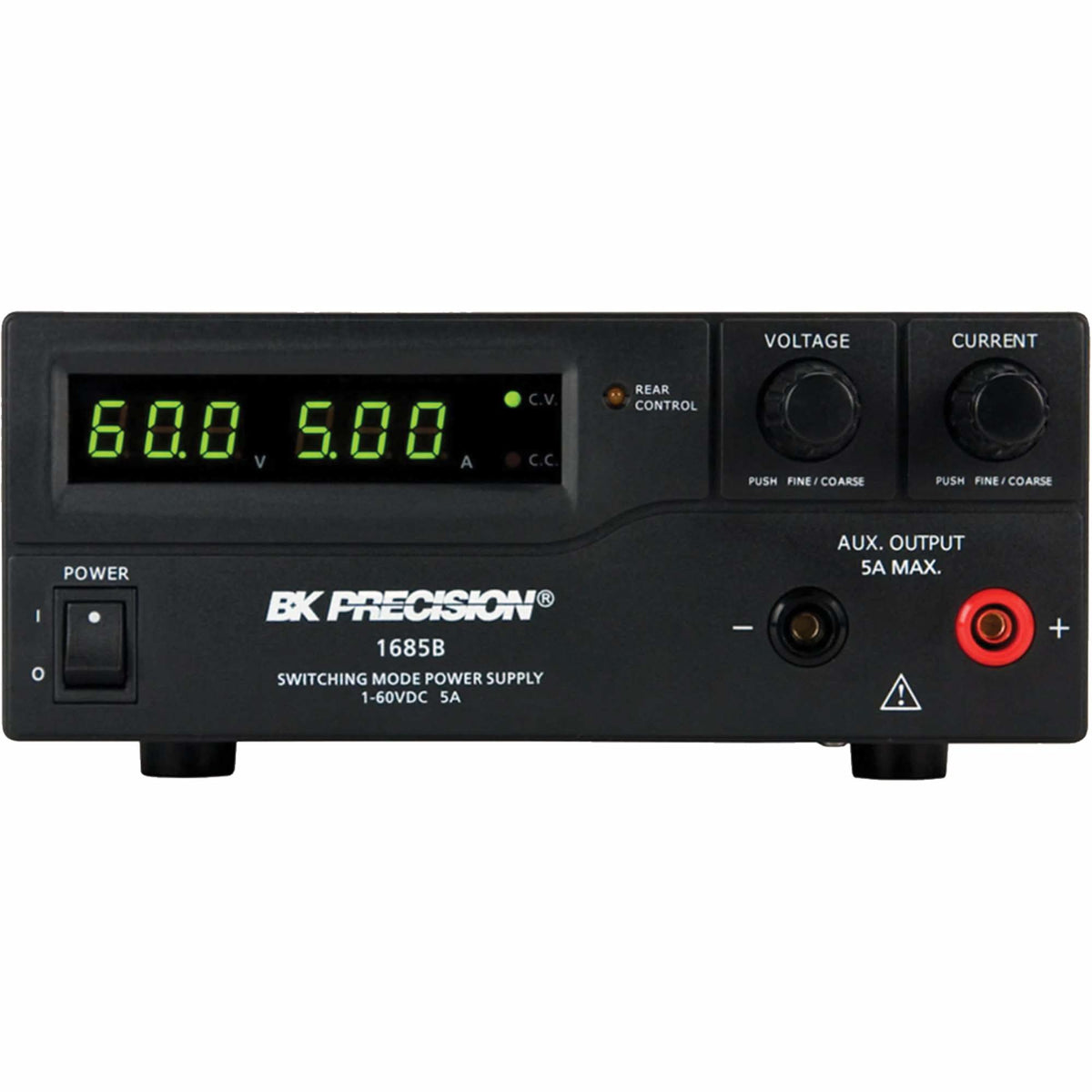

Switching DC Power Supply
$875.00
SKU: XJ560
Buyer protection
Secure checkout
Fast shipping
Same day handling
Specifications
Input Voltage
240 VAC
Output Voltage
18 VAC
Voltage Regulation
Load (0 to 100% load): ≤50 mV, Line (90 to 132 V AC, 170 to 264 V AC variation): ≤20 mV
Current Regulation
Load (10 to 90% rated voltage): ≤100 mA, Line (90 to 132 V AC, 170 to 264 V AC variation): ≤50 mA
Ripple And Noise
Ripple and noise voltage (rms): ≤5 mV, Ripple and noise voltage (peak-peak): ≤50 mV, Current ripple and noise (rms): ≤30 mA
Meter Type And Accuracy
Voltage/current meter: 3-digit LED display ±0.2% + 3 counts
Full Load Input Current
4.6 A (100 V AC), 2.1 A (230 V AC)
Efficiency
81% (100 V AC), 85% (230 V AC)
Switching Frequency
100 to 120 kHz
Tracking Overvoltage Protections
O/P 1 to 5 V: Set voltage +2 V, O/P 5 to 18 V: Set voltage +3 V
Transient Response Time (50 To 100% Load)
1.5 ms
