DESTACO

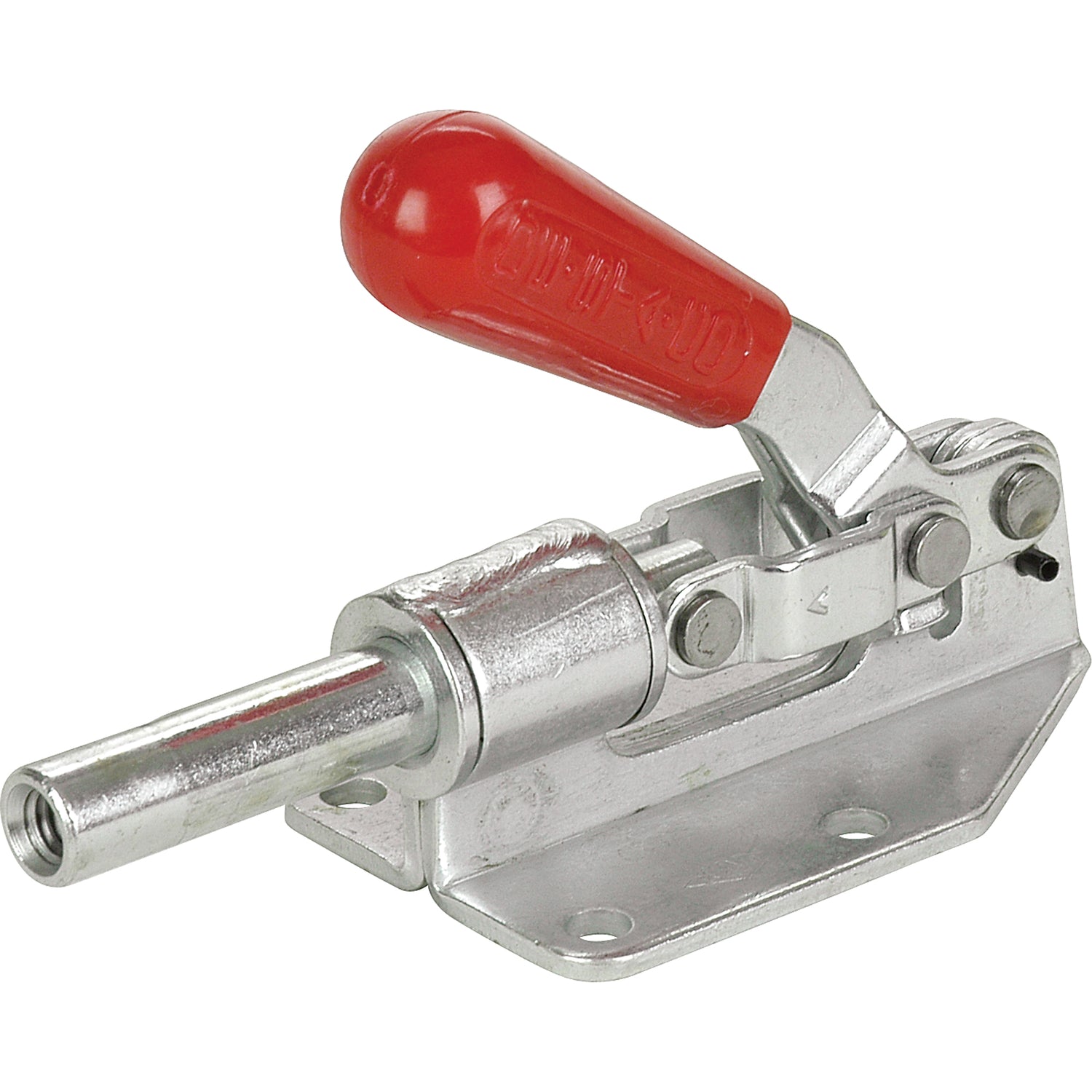

Straight Line Clamps - 609 Series, 1-1/4" (31.75 mm) Capacity, 300 lbs. Clamping Force
$87.30
SKU: TN107
Buyer protection
Secure checkout
Fast shipping
Same day handling
- Popular in assembly operations or used in conjunction with welding jigs. Straight line clamps provide quick, strong holding force. Most clamps lock in two positions allowing them to be used as a push or pull clamp. These models can be bolted or welded to a flat surface. Plungers extend out to clamp material against a fence or square surface. Model TN103 includes a 8-32 nylon spindle assembly (TN126). Model TN105 plunger is tapped for 5/16-18 adjustment spindle (not provided). Model TN107 plunger is tapped for 5/16-18 neoprene tip or other custom fixture.
Specifications
Clamping Capacity
1-1/4" (31.75 mm)
Clamping Force
300 lbs.
Dimensions" A
3.375
Dimensions" B
4.4375
Dimensions" C
31/32
Base L" X W"
3 9/16 x 2 3/16
Weight
0.88 lbs.
