FTI Finish Thompson Inc.

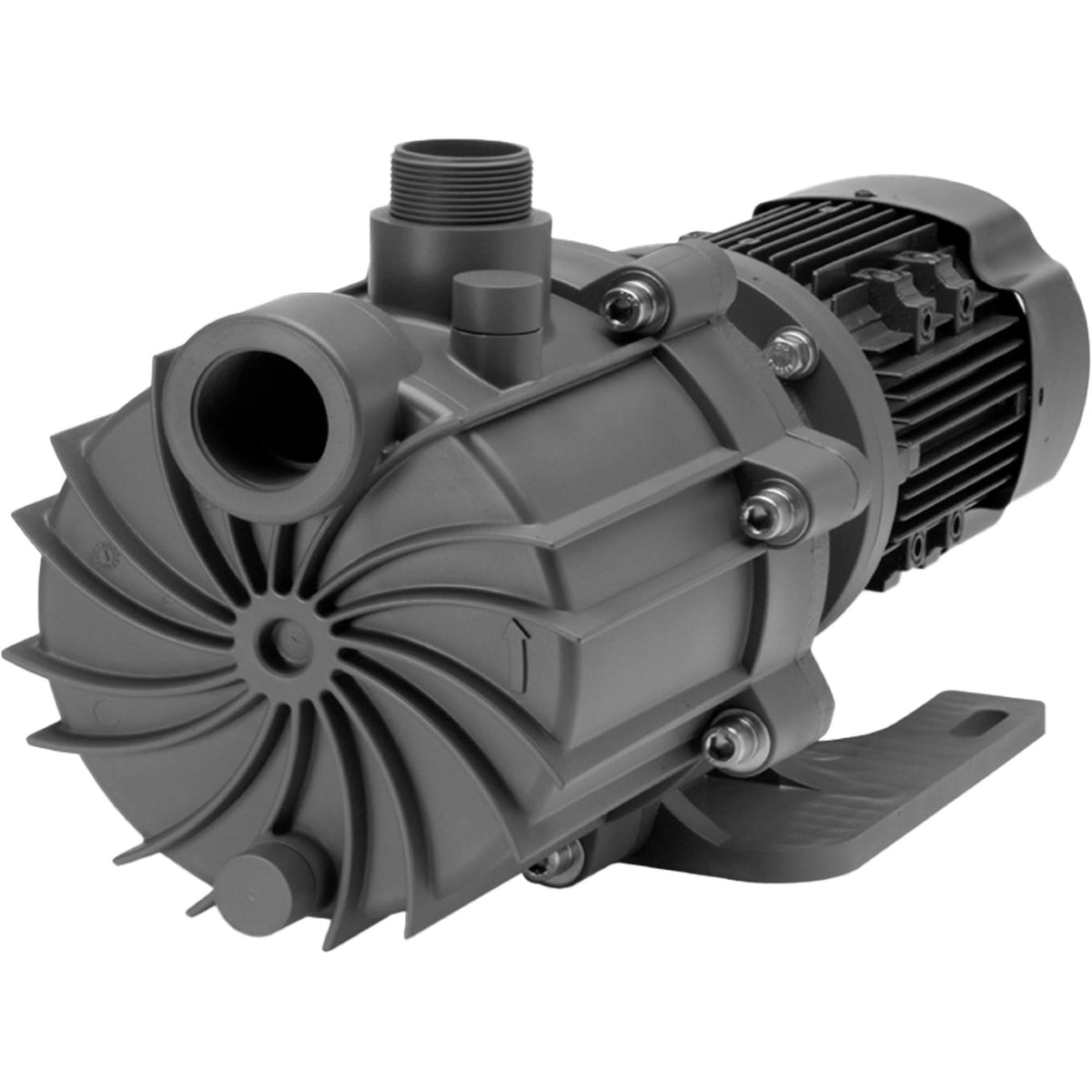

Self-Priming Wet End Magnetic Drive Pump with Carbon Bushing
$6,212.00
SKU: PUN316
Buyer protection
Secure checkout
Fast shipping
Same day handling
- Self-priming, magnetic drive
- Provides up to 25 ft. (7.6 m) lift or equivalent
- Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
- Retains fluid for re-priming when shut off without a check valve
- Extended run dry ability (with carbon bushing)
- High operating efficiency
- PVDF construction
- Powerful neodymium magnets
- Close-coupled design
- Threaded (NPT or BSP), union or flange connections
- Back pullout design
- Mounts to NEMA and (B5 & B14) IEC motor frames
- Easy set measurement free drive
- ISO 1940 G2.5 balancing
- CE certified
- High working pressure up to 80 psi (5.5 bar)
- Specific gravity over 1.8
Specifications
Intake Size
1-1/2"
Discharge Port Size
1-1/2"
Suction Head
68'
Connection Type
NPT
Impeller Size
4.625"
Magnet Type
6-Pole
Material
PVDF
Max. Flow
104 GPM
Max. Operating Temperature
220°F (104°C)
Max. Pressure
90 PSI
Motor Frame Size
56C
