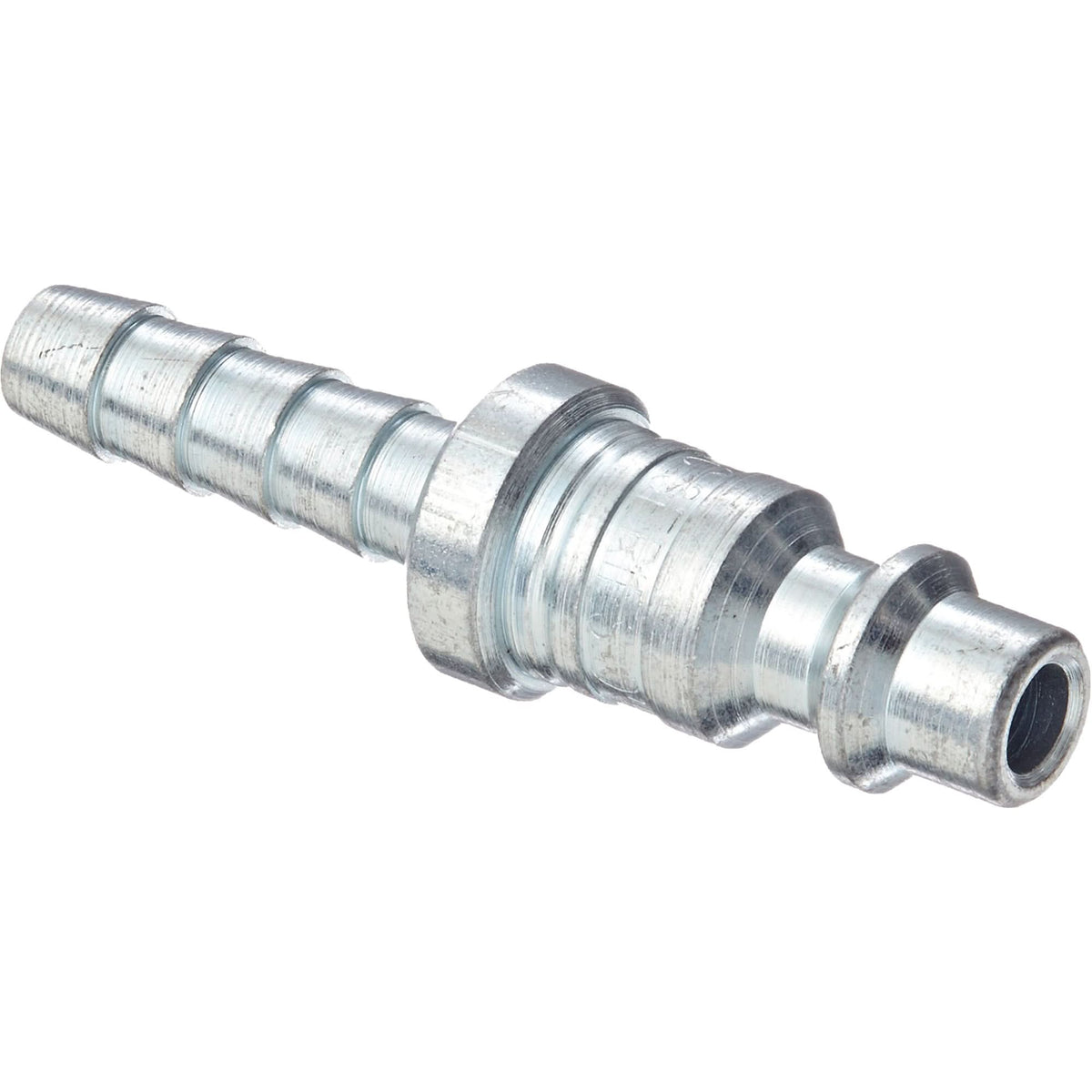

Pneumatic Standard Hose Barb Coupler, Steel, Type DF, 1/4", 500 psi

Dixon Group

Pneumatic Standard Hose Barb Coupler, Steel, Type DF, 1/4", 500 psi

$7.97

SKU: NAA095

Buyer protection Secure checkout Fast shipping Same day handling
  • Machined components are manufactured using solid bar stock
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome

Specifications

Material
Steel
Type
Type DF
Coupler Size
1/4"
Thread
None
Maximum Operating Pressure
500 psi
Maximum Burst Pressure
Brass D-Series Automatic Couplers (16000 PSI), Brass F-Series Manual Couplers (11500 PSI), Steel F-Series Manual Couplers (6500 PSI)
Maximum Outer Diameter
0.56"
Temperature Range
-40°F to 250°F (-40°C to 121°C)
Length
2.09"
Hose Inner Diameter
1/4"
Compatible With
Foster 3, 4, 5 & 6 Series, Parker 30-Series Manual Interchange, Hansen 3000, 4000, 5000 & 6000, Hansen 1000, 400 & 500
