Lincoln Electric

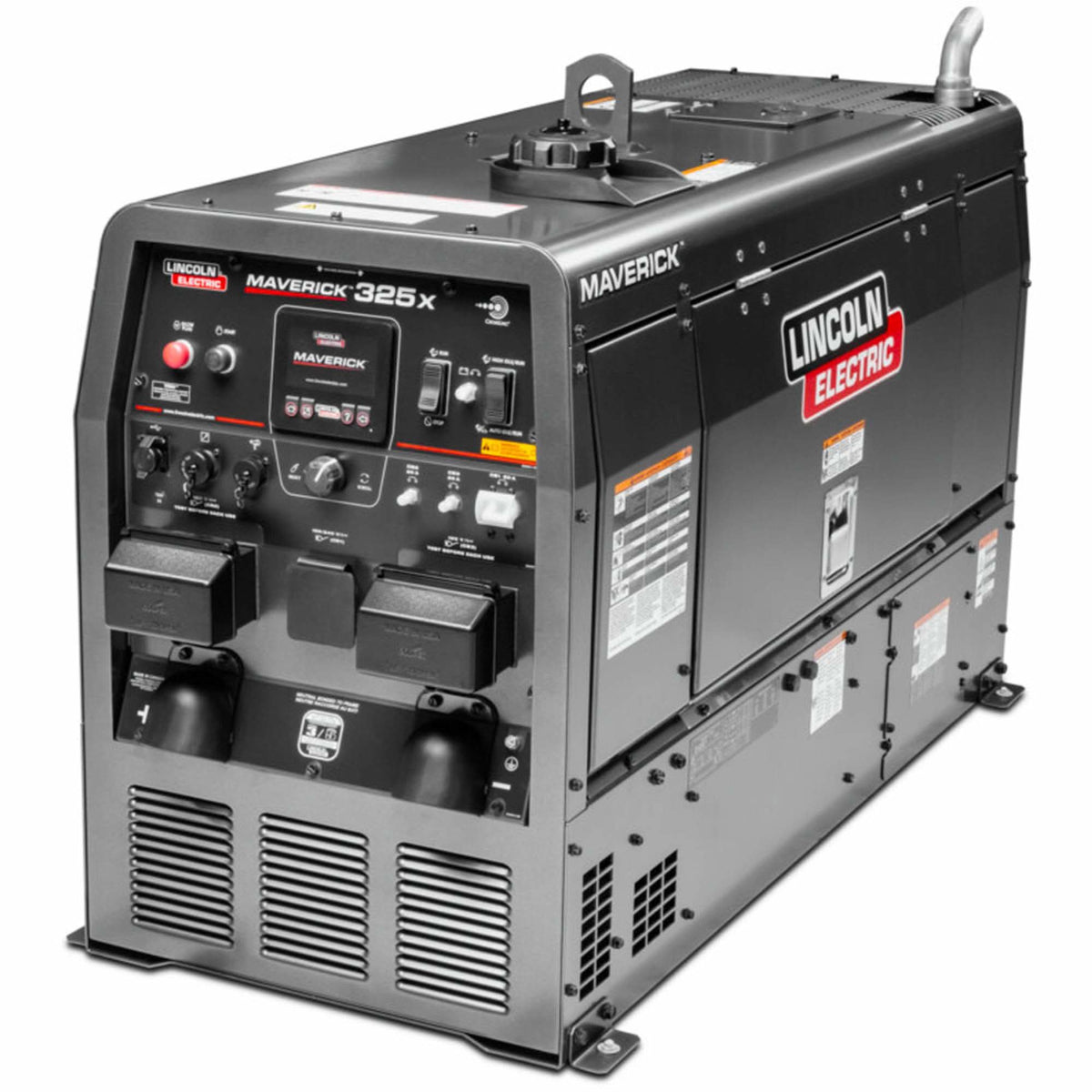

Maverick® 325X Advanced Engine-Driven Welder, 120 V/240 V, 1 Ph, 60 Hz
$34,653.00
SKU: TTV768
Buyer protection
Secure checkout
Fast shipping
Same day handling
Specifications
Voltage Input Power
120 V/240 V
Phase Input Power
1 Ph
Hertz Input Power
60 Hz
Dimensions (H X W X D)
34.23" x 21.25" x 54.29" (867 mm x 540 mm x 1379 mm)
Weight
750 lbs. (340.2 kg)
IEC Rating
325A / 33V / 100% @ 104°F (40°C)
Open Circuit Voltage
80 Peak OCV at 3600 RPM
Rated Gouging Carbon Diameter
5/16" (8.0 mm)
Engine Horsepower
24.8 hp (18.5 kW)
Receptacle Types
NEMA 5-20R, NEMA 14-50R
