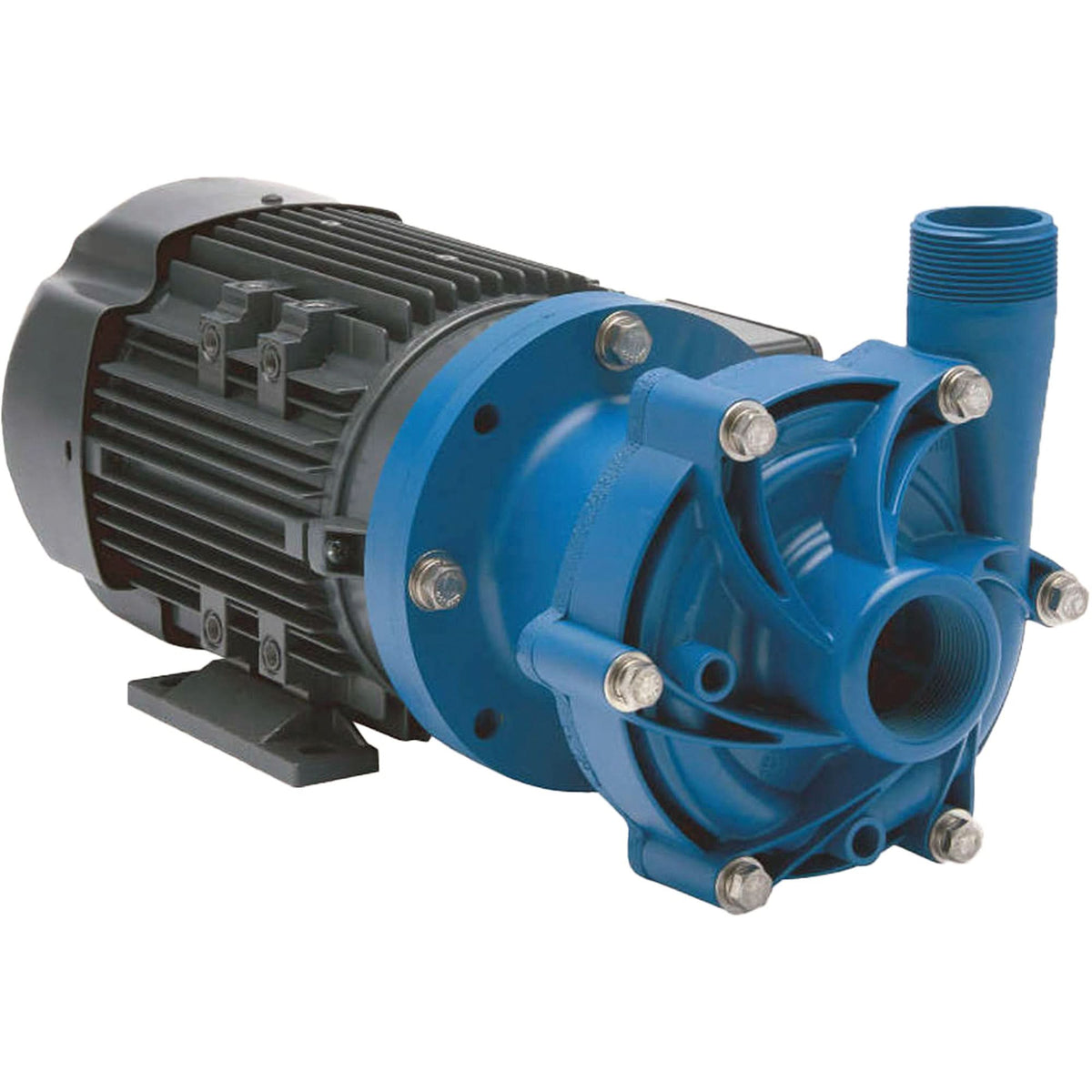

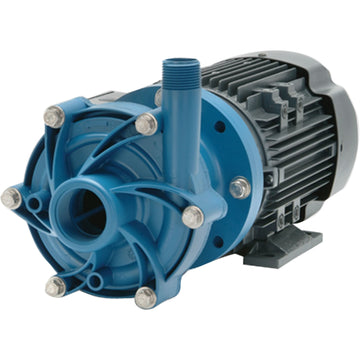

Magnetic Drive Pump with Carbon Bushing
Magnetic Drive Pump with Carbon Bushing Magnetic Drive Pump with Carbon Bushing

FTI Finish Thompson Inc.

Magnetic Drive Pump with Carbon Bushing

$2,277.00

SKU: PUN304

Buyer protection Secure checkout Fast shipping Same day handling
  • Extended run dry ability (with carbon bushing)
  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP

Specifications

Intake Size
1-1/2"
Discharge Port Size
1-1/2"
Motor
1/2 HP
Suction Head
34'
Connection Type
NPT
Impeller Size
3.1875"
Magnet Type
6-Pole
Material
Polypropylene (PPG)
Max. Flow
69 GPM
Power
115-208-230 V, 60 Hz
Max. Operating Temperature
180°F (82°C)
Max. Pressure
80 PSI
