FTI Finish Thompson Inc.

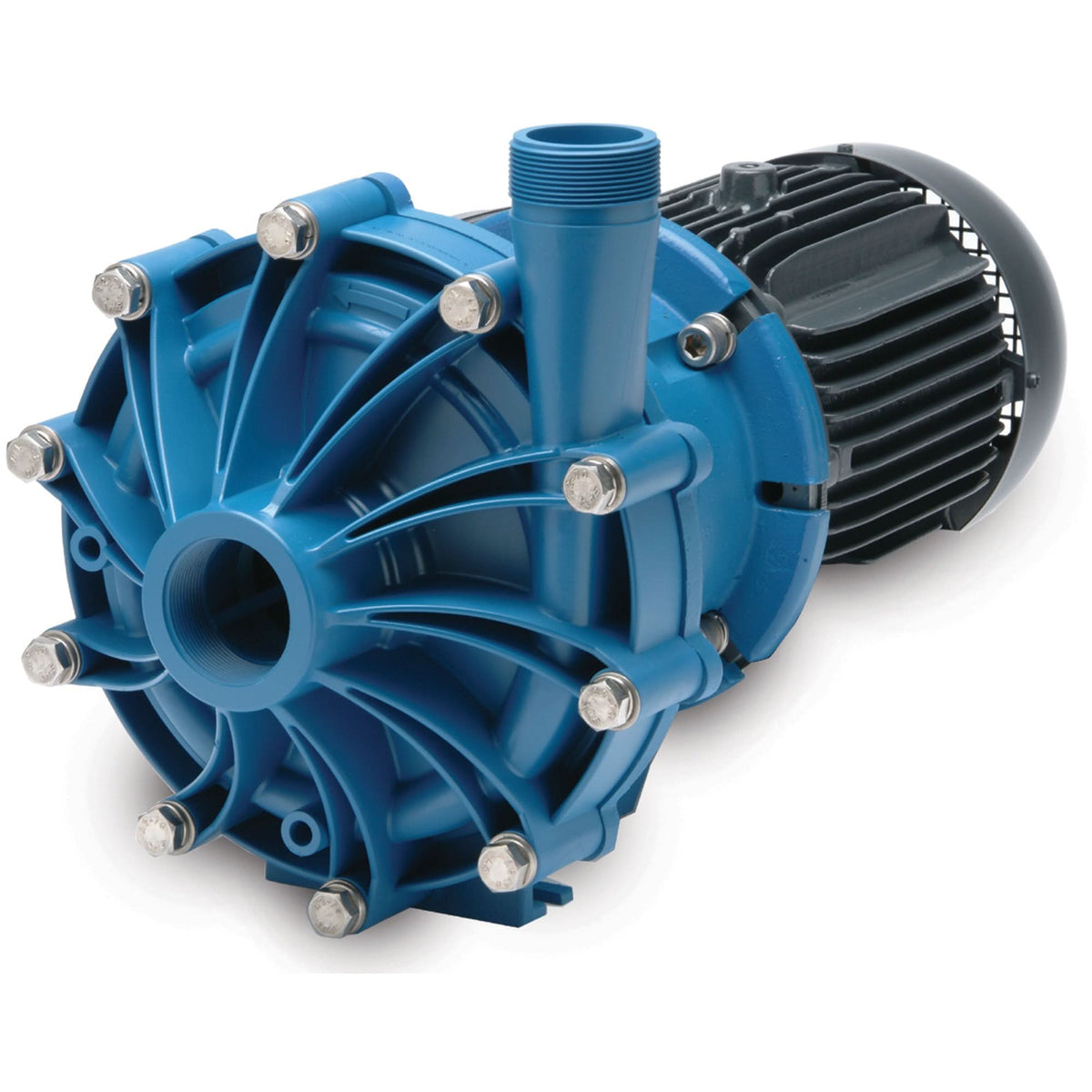

Magnetic Drive Pump End with Carbon Bushing
$6,811.00
SKU: PUN277
Buyer protection
Secure checkout
Fast shipping
Same day handling
- Extended run dry ability (with carbon bushing)
- High operating efficiency
- Powerful neodymium magnets
- Close-coupled design
- Threaded NPT connections
- Horizontal or vertical installation
- Back pullout design
- Mounts to IEC 56, 63, 71 B14 motor frames
- Easy set, measurement free drive
- CE certified
- Working pressure to 60 psi (4.1 bar)
- Specific gravity up to 1.8
- Viscosity up to 50 cP
Specifications
Intake Size
2"
Discharge Port Size
2"
Suction Head
201'
Connection Type
NPT
Impeller Size
7.25"
Magnet Type
8-Pole
Material
Polypropylene (PPG)
Max. Flow
221 GPM
Max. Operating Temperature
180°F (82°C)
Max. Pressure
90 PSI
Motor Frame Size
184TC
