DESTACO

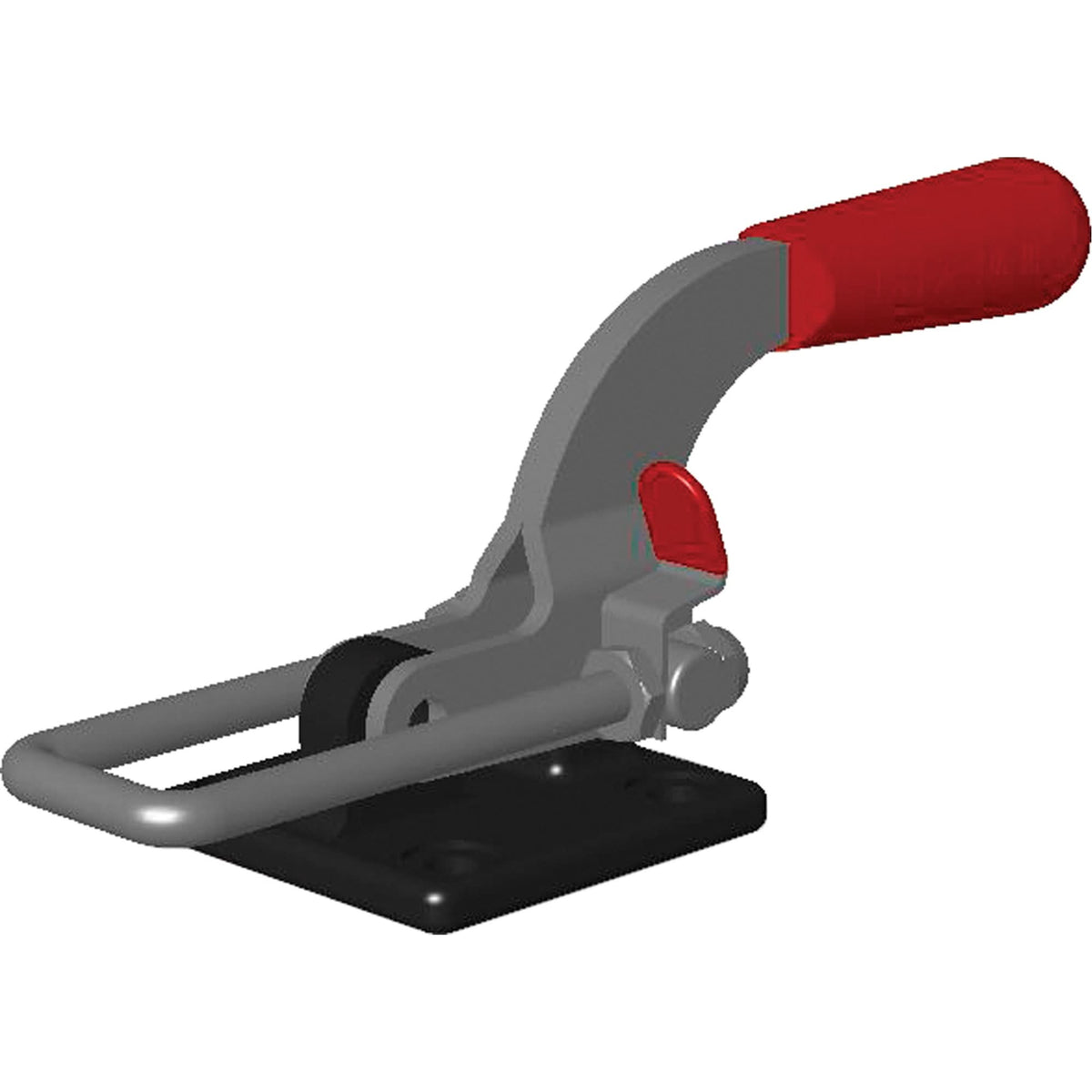

Latch Clamps - 300 Series, 4000 lbs. Clamping Force
$243.00
SKU: TN081
Buyer protection
Secure checkout
Fast shipping
Same day handling
- Commonly used to hold lids, molds, dies and jigs together. Completely adjustable hook grabs latch installed on material or jig to be pulled together and holds both sides together. Clamps can be bolted or welded into place. Ideal for high vibration applications. Pull bar is threaded for easy adjustment. The over-center toggle locking action of these clamps suits them ideally for holding against heavy forces such as those generated in plastic molding operations, clamping of doors, lids and access covers. Each clamp includes latch plate.
Specifications
Clamping Force
4000 lbs.
Dimensions" A
4
Dimensions" B
10.375
Thread Adjustment"
1/2"
Base L" X W"
3 3/8 x 3 1/8
Drawing Cap."
3.5
Weight
2.75 lbs.
