DESTACO

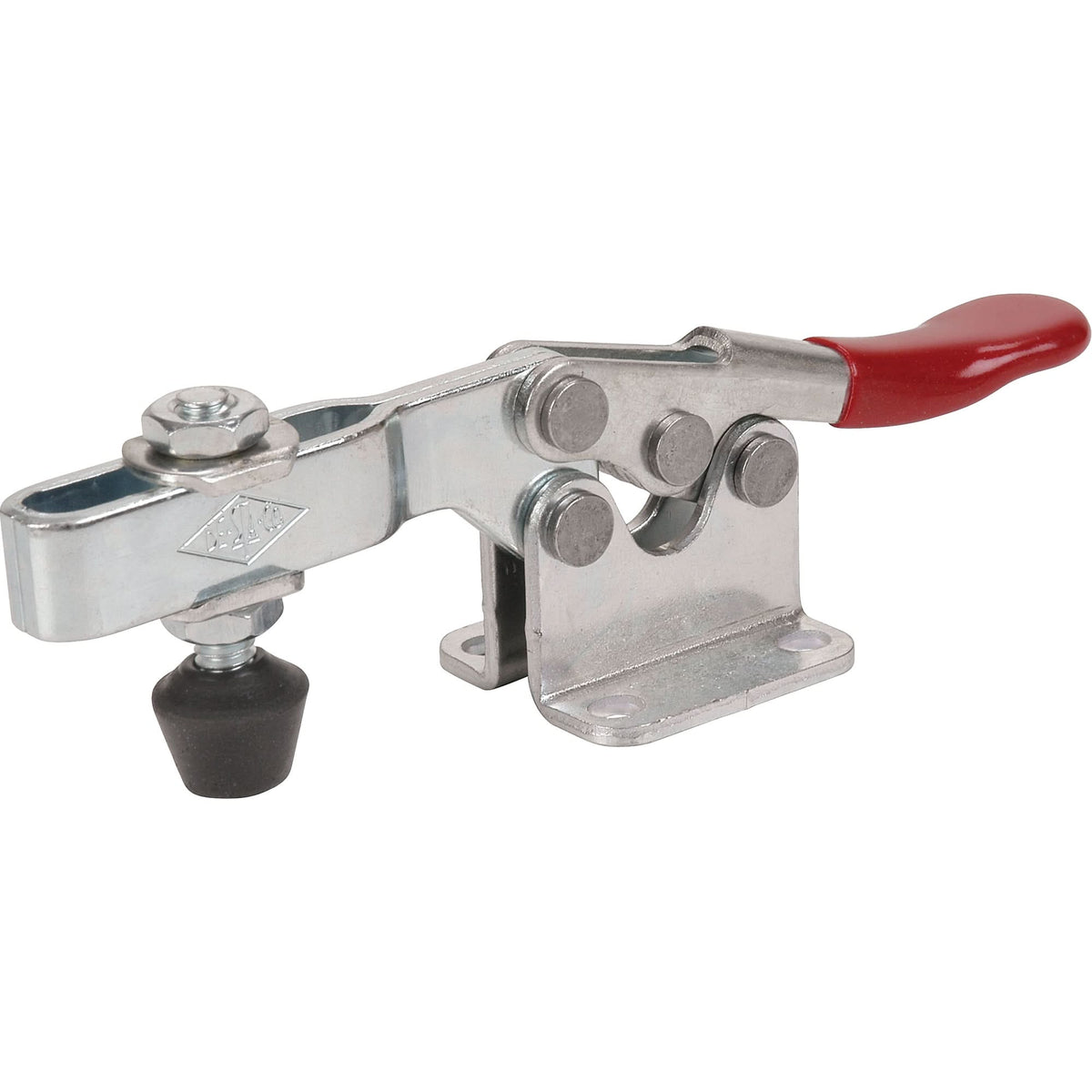

Horizontal Hold-Down Clamps - 215 Series
$45.90
SKU: TN068
Buyer protection
Secure checkout
Fast shipping
Same day handling
- Low height design makes clamps outstanding when headroom is a concern. Unlike the handle on the vertical clamp, the horizontal clamp moves in the opposite direction. Hold down bar available in solid or U-shaped format. Some models available in stainless steel on request. Holding capacities to 500 lbs. Larger capacities available. U-bar horizontal clamps provide greater rigidity and overall performance. The 215 Series includes a 1/4-20 bonded neoprene-tipped spindle assembly (TN134) and washers (TN123). The 225 Series includes a 5/16-18 bonded neoprene spindle assembly (TN135) and flanged washers (TN125).
Specifications
Style
Horizontal
Clamping Force
200 lbs.
Dimensions" A
1.5"
Dimensions" B
5.4375
Dimensions" C
1.25"
Dimensions" D
1
Base L" X W"
1 7/16 x 1 3/8
Weight
0.32 lbs.
