Lincoln Electric

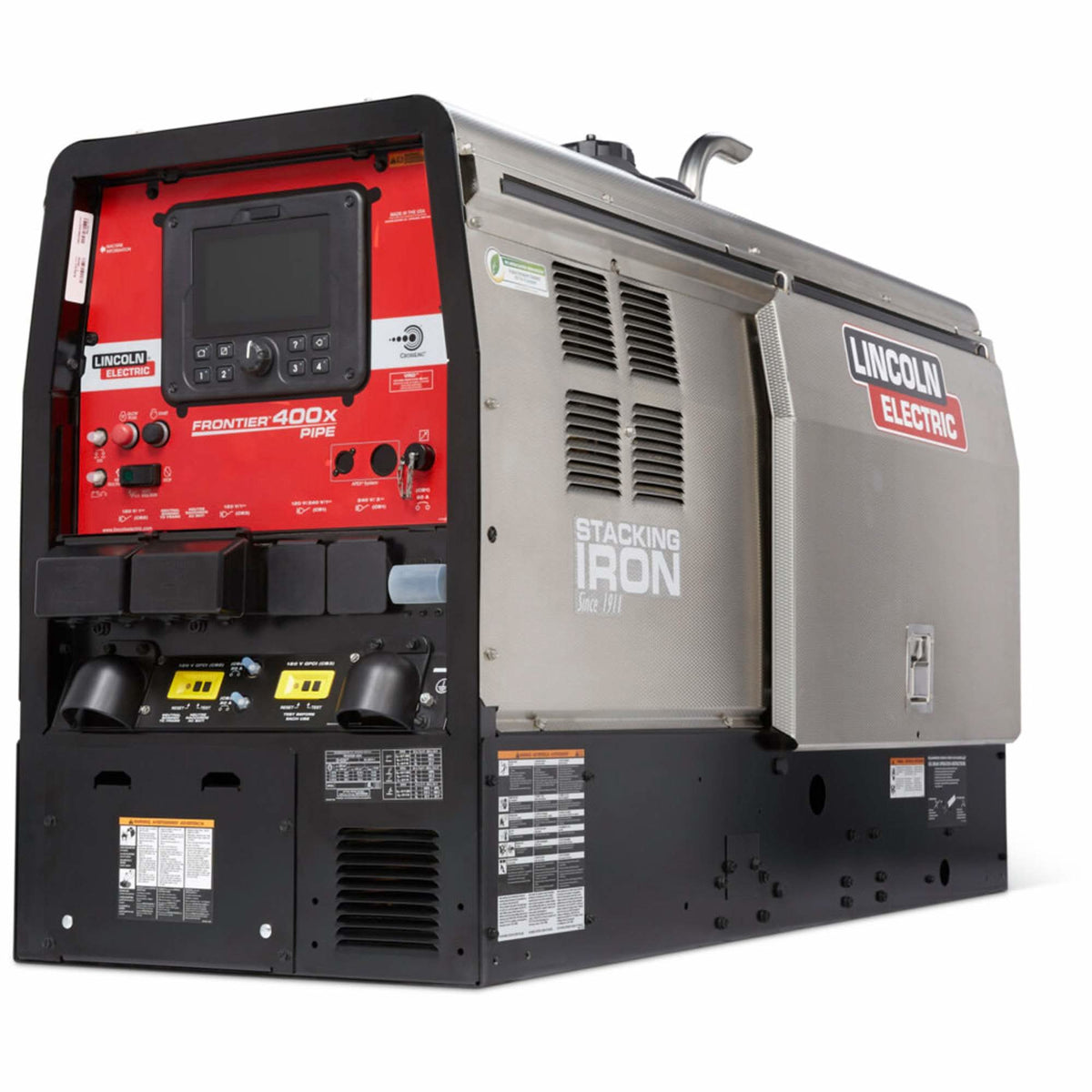

Frontier® 400X Pipe Advanced Engine-Driven Welder/Generator
$51,061.00
SKU: TTV753
Buyer protection
Secure checkout
Fast shipping
Same day handling
Specifications
Phase Input Power
1 Ph/3 Ph
Hertz Input Power
60 Hz
Dimensions (H X W X D)
35.9" x 25.3" x 60" (913 mm x 643 mm x 1524 mm)
Weight
1035 lbs. (469 kg)
IEC Rating
325A / 33V / 100% @ 104°F (40°C)
Max. Rating
400A / 26V / 60% @ 104°F (40°C)
Output Range By Mode
Stick/Pipe (SMAW): 30 – 400 Amps, CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts, DC TIG (GTAW): 5 – 400 Amps, Arc Gouging (CAC-A): 60 – 400 Amps
Open Circuit Voltage
71 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter
5/16" (8 mm)
Communication Technology
CrossLinc
Engine Horsepower
24.7 hp (18.4 kW)
