Lutz

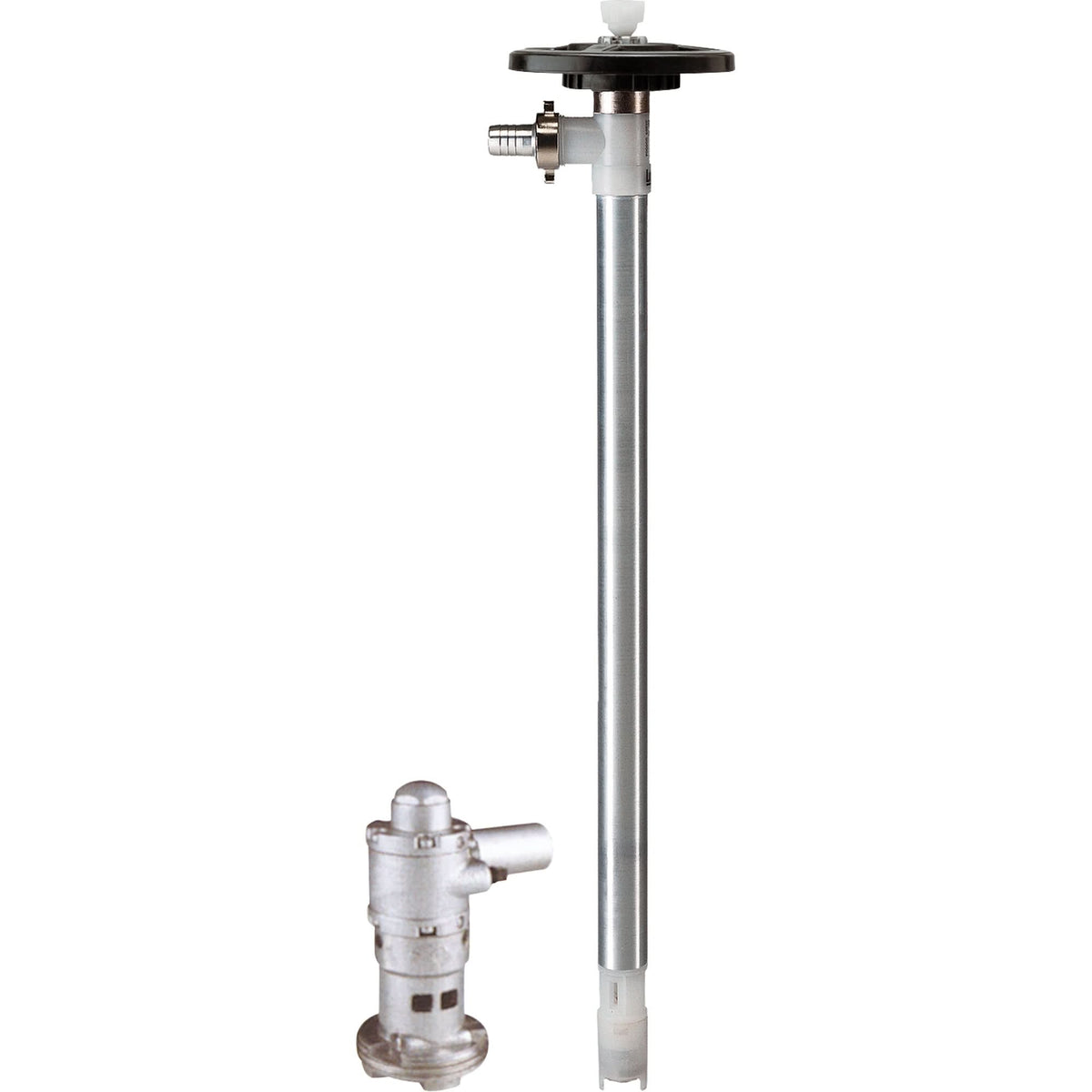

Air Drum Pumps, 41.5 GPM
$1,859.00
SKU: DB820
Buyer protection
Secure checkout
Fast shipping
Same day handling
- Examples of Liquids: Thin-bodies and medium viscous mineral oils, butylene glycol, diesel fuel, fuel oil, crude oil, phenol, glycerine, fatty acid, ethereal oils, linseed oil, paraffin oil, etc. ; DRUM PUMPS: Sealless pumps suitable for pumping clean, dirty thin bodied, slightly viscous, aggressive and non-aggressive liquids out of drums and containers. Pump tube is non-lubricated, thus preventing contamination of the liquids pumped. Comes with 39" pump tube and stainless steel or Hastelloy C drive shaft. Models DB823, DB824, DB825 and DB826 come with mechanical seal. NOTE: Only DB837 and DB829 can be used for flammable liquids and include static kit. ; ; B. Compressed air motor: 220 W, 1/3 HP, operating pressure is 87 PSI Note: Models DB838, DB816, DB821, DB822, DB829, and DB830 come with Hastelloy C drive shaft. ; Pumps that have a stainless steel construction come with a wall hanger, 10 ft. bonding wire and 26' grounding wires. ; Pumps that have a polypropylene construction come with a barrel adaptor, a wall hanger, 8' PVC hose and hose c-clamps (except DB827).
Specifications
Max. Flow Rate
41.5 GPM
Max. Head
24.5'
Pump Tube Material
Aluminum
Bearings
Carbon
Gravity
1.2
Specific Viscosity Cps
400
Wt. Lbs.
14
Free shipping on orders over $99. Same day handling on orders placed before 2 PM EST.
