Lutz

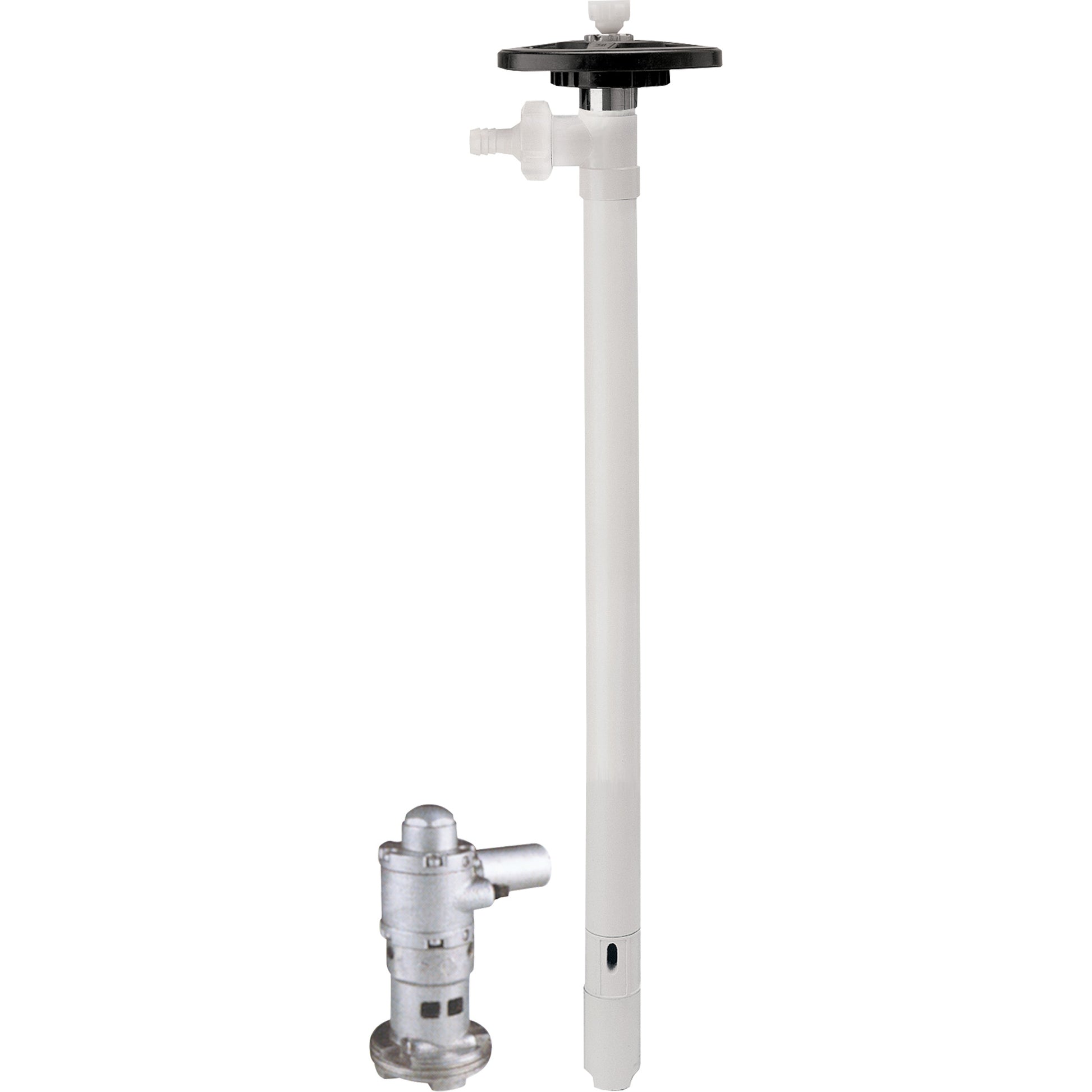

Air Drum Pumps, 32 GPM
$2,830.00
SKU: DB822
Buyer protection
Secure checkout
Fast shipping
Same day handling
- Examples of Liquids: Highly concentrated acids and alkalis, bromic acid, hydrobromic acid, chloroform, dimethyl phthalate, hydrofluoric acid, potassium bromate, sodium perchlorate, phosphoric acid 95%, nitric acid, etc. ; DRUM PUMPS: Sealless pumps suitable for pumping clean, dirty thin bodied, slightly viscous, aggressive and non-aggressive liquids out of drums and containers. Pump tube is non-lubricated, thus preventing contamination of the liquids pumped. Comes with 39" pump tube and stainless steel or Hastelloy C drive shaft. Models DB823, DB824, DB825 and DB826 come with mechanical seal. NOTE: Only DB837 and DB829 can be used for flammable liquids and include static kit. ; ; B. Compressed air motor: 220 W, 1/3 HP, operating pressure is 87 PSI Note: Models DB838, DB816, DB821, DB822, DB829, and DB830 come with Hastelloy C drive shaft. ; Pumps that have a stainless steel construction come with a wall hanger, 10 ft. bonding wire and 26' grounding wires. ; Pumps that have a polypropylene construction come with a barrel adaptor, a wall hanger, 8' PVC hose and hose c-clamps (except DB827).
Specifications
Max. Flow Rate
32 GPM
Max. Head
22'
Pump Tube Material
PVDF
Bearings
PTFE
Gravity
1.2
Specific Viscosity Cps
600
Wt. Lbs.
12
