JET

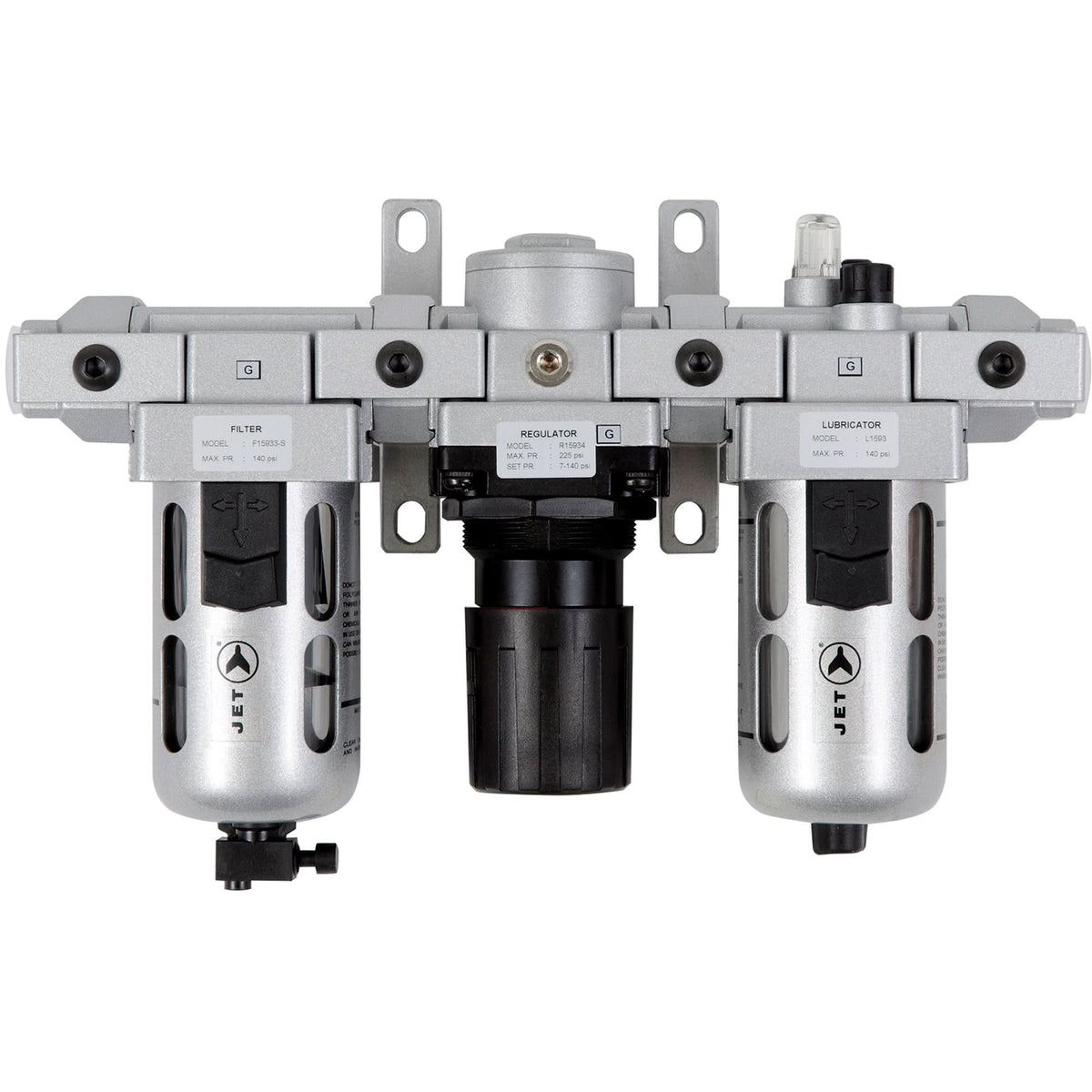

AFRLMS12 3-Piece Standard Air Filter, Regulator & Lubricator, 1/2" NPT
$468.00
SKU: NIS676
Buyer protection
Secure checkout
Fast shipping
Same day handling
- The three components attached in series and are easily removable/mountable without disturbing the pipe line
- Air filter is designed to eliminate dust water and other impurities from reaching air tool extending tool life
- Air regulator governs air flow to desired PSI air pressure
- Lubricator device is indispensable for air generated equipment atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool
Specifications
Connection Size
1/2" NPT
Operating Pressure
145 PSI
Bowl Filter Size
44 ml (1.5 oz.)
Bowl Lubricator Size
152 ml (5.17 oz)
Height
11.02" (280 mm)
Width
12" (305 mm)
Max. Air Flow
123 CFM (3500 LPM)
Pressure Gauge Port Size
1/8"
Temperature Range
0°C to 60°C (32°F to 140°F)
Wetted Components
Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel, and nitrile
Country Of Origin
India
