JET

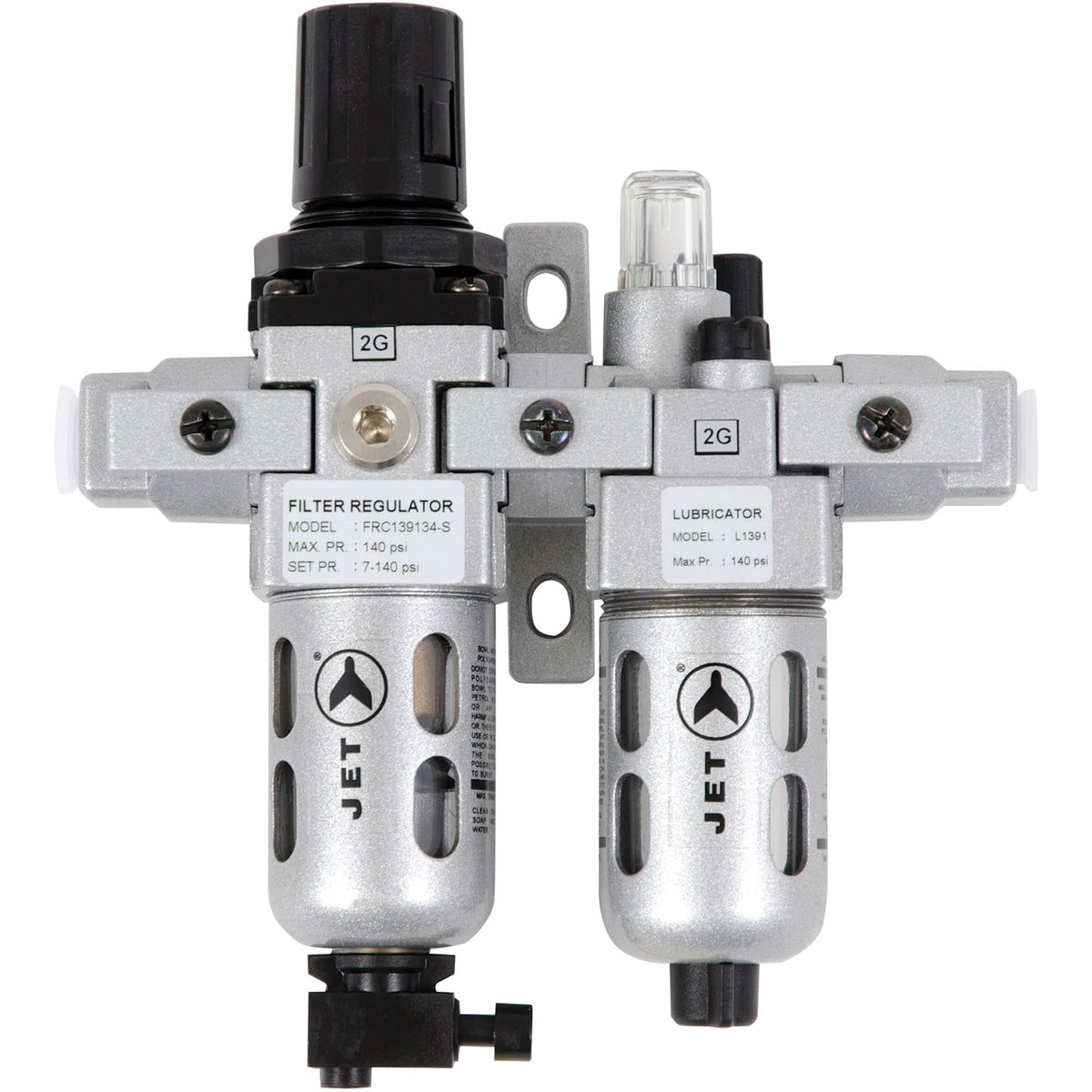

AFRLCM14 2-Piece Miniature Air Filter, Regulator & Lubricator, 1/4" NPT
$229.00
SKU: NIS663
Buyer protection
Secure checkout
Fast shipping
Same day handling
- A combination of 2 Modular units - Filter Regulator and Lubricator connected together using a spacer block with a built-in wall mounting bracket and piping adaptors
- Air filter is designed to eliminate dust water and other impurities from reaching air tool extending tool life
- Lubricator device is indispensable for air generated equipment atomizing lubricant into the compressed air, allowing it to reach and lubricate the internal parts of the air tool
- Air regulator governs air flow to desired PSI air pressure
Specifications
Connection Size
1/4" NPT
Operating Pressure
145 PSI
Bowl Filter Size
9 ml (0.3 oz.)
Bowl Lubricator Size
20 ml (0.68 oz)
Height
6.69" (170 mm)
Width
5.75" (146 mm)
Max. Air Flow
18 CFM (500 LPM)
Pressure Gauge Port Size
1/8"
Temperature Range
0°C to 60°C (32°F to 140°F)
Country Of Origin
India
Free shipping on orders over $99. Same day handling on orders placed before 2 PM EST.
