Dwyer | SKU: THZ637

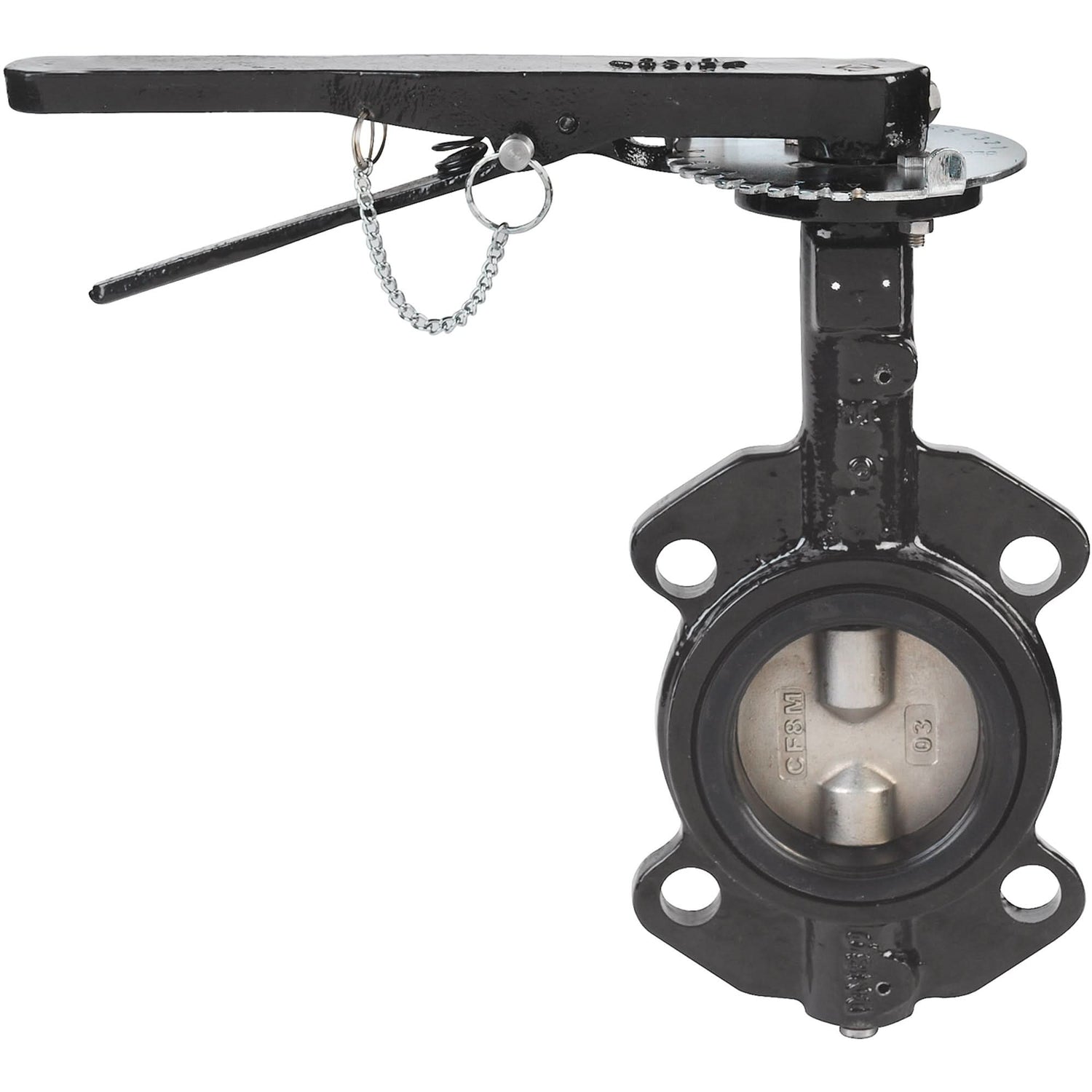

Butterfly Valves - Series BFV, 5" Pipe, 225 PSI

$858⁰⁰ CAD

Delivery and Shipping

Most products are currently free shipping within Canada, except in some remote areas. Please verify your delivery address to ensure accurate shipping cost information is displayed.
The delivery date is for reference only and may be adjusted according to the delivery address and available stock.

Are you an Amazon seller?

Learn about our FBA prep service by clicking the link at the top of the page. (menu dropdown on mobile)

Secure Payments
All transactions are processed through trusted, encrypted payment gateways to ensure your information is protected at all times.

Privacy Protection
Your personal and business information is handled with strict confidentiality and is never shared or sold.

Order Accuracy & Care
Every order is carefully packed and inspected before shipment to ensure it meets our quality standards.

Reliable Shipping Support
Our team is available to assist with shipping inquiries and delivery concerns to ensure a smooth experience.

Professional Service
We are committed to providing reliable, transparent, and professional service on every order.

Customer Support
Have questions or need assistance? Our support team is available to help before and after your purchase.

Description

CV VALUES
Butterfly Valves - Series BFV-LOW COST, LEVER OPERATED, LUG OR WAFER PATTERN, 225 PSIG ; Service: Compatible liquids, gases and steam ; Line Size: 2" to 12" ; Body Style: 2-way, wafer or lug butterfly ; End Connections: Flange, to be used with flanges that are ANSI Class 125 (B16.1) and ANSI Class 150 (B16.5) dimensions ; Pressure Limits: 225 PSI (151.5 bar) WOG ; Wetted Materials: Body: Ductile iron ; Disc: 316 SS ; Seat and O-ring: EPDM or PTFE ; Stem: 410 SS ; Temperature Limits: EPDM: -50 to 250 °F (-46 to 121 °C). ; PTFE; 0 to 300 °F (-18 to 149 °C) ; Bearings: Nylatron ; Flow Rate: See Cv chart ; Operator: 2 to 6": 10-position locking hand lever. 8 to 12": manual gear
Full Open 90 °: 1022

Specifications

Pipe Size

Max. Pressure

225 PSI

Type

Wafer

Liner

EPDM

Degree Opening 10 ¬∞

0.8

Degree Opening 20 ¬∞

Degree Opening 30 ¬∞

Degree Opening 40 ¬∞

133

Degree Opening 50 ¬∞

237

Degree Opening 60 ¬∞

392

Degree Opening 70 ¬∞

620

Full Open 80 ¬∞

930
