FTI Finish Thompson Inc. | SKU: PUN315

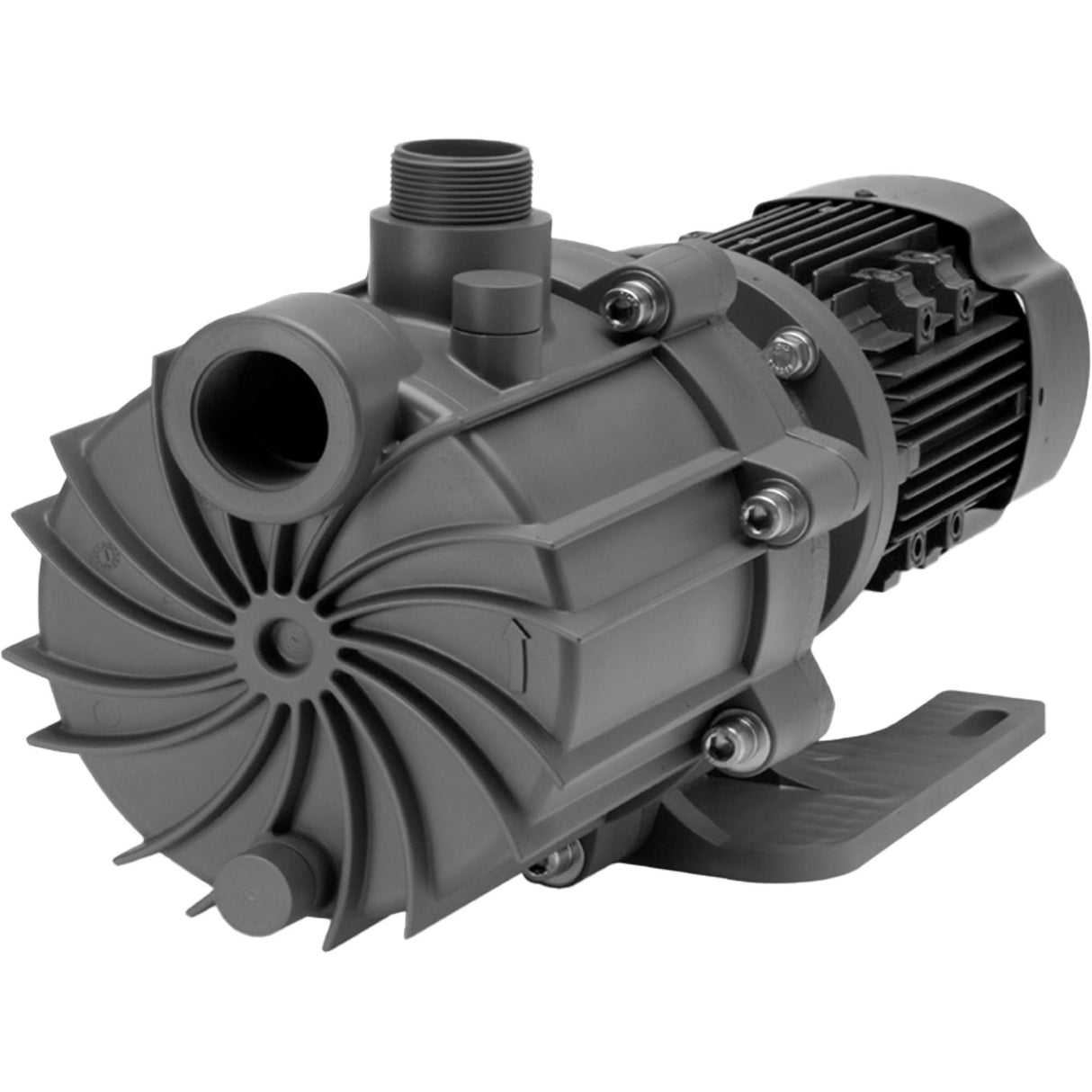

Self-Priming Magnetic Drive Pump with Carbon Bushing

$8,027⁰⁰ CAD

Delivery and Shipping

Most products are currently free shipping within Canada, except in some remote areas. Please verify your delivery address to ensure accurate shipping cost information is displayed.
The delivery date is for reference only and may be adjusted according to the delivery address and available stock.

Are you an Amazon seller?

Learn about our FBA prep service by clicking the link at the top of the page. (menu dropdown on mobile)

Secure Payments
All transactions are processed through trusted, encrypted payment gateways to ensure your information is protected at all times.

Privacy Protection
Your personal and business information is handled with strict confidentiality and is never shared or sold.

Order Accuracy & Care
Every order is carefully packed and inspected before shipment to ensure it meets our quality standards.

Reliable Shipping Support
Our team is available to assist with shipping inquiries and delivery concerns to ensure a smooth experience.

Professional Service
We are committed to providing reliable, transparent, and professional service on every order.

Customer Support
Have questions or need assistance? Our support team is available to help before and after your purchase.

Description

Self-priming, magnetic drive
Provides up to 25 ft. (7.6 m) lift or equivalent
Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
Retains fluid for re-priming when shut off without a check valve
Extended run dry ability (with carbon bushing)
High operating efficiency
PVDF construction
Powerful neodymium magnets
Close-coupled design
Threaded (NPT or BSP), union or flange connections
Back pullout design
Mounts to NEMA and (B5 & B14) IEC motor frames
Easy set measurement free drive
ISO 1940 G2.5 balancing
CE certified
High working pressure up to 80 psi (5.5 bar)
Specific gravity over 1.8

Specifications

Intake Size

1-1/2"

Discharge Port Size

1-1/2"

Motor

2 HP

Suction Head

68'

Connection Type

NPT

Impeller Size

4.625"

Magnet Type

6-Pole

Material

PVDF

Max. Flow

104 GPM

Max. Operating Temperature

220¬∞F (104¬∞C)

Max. Pressure

90 PSI

Power

208-230-460 V, 60 Hz
